On this page, I demonstrate how I attach the Ricoh GXR A12-50 combo to a Baader Hyperion 5 mm telescope eyepiece with a 54 mm filter thread for taking astro photos using the projection technique. Projection technique means that the camera is mounted to the eyepiece, not directly to the telescope. The latter technique can only be used with SLR cameras where the body can be directly attached to the telescope - typically using a T mount adapter.

BTW: I mention the 1:50 method on this site several times. This is a simple variant of the projection technique - you hold the camera by hand to the eyepiece instead of attaching it firmly...

Note: Since I no longer own the Baader eyepiece, I cannot offer any further information on this configuration and photos taken with it. In addition, I do no longer own the Meade 10" Dobson telescope. Moreover, I sold the Ricoh GXR.



Prolog...

At the beginning a few warnings:



Eyepiece and Adapters

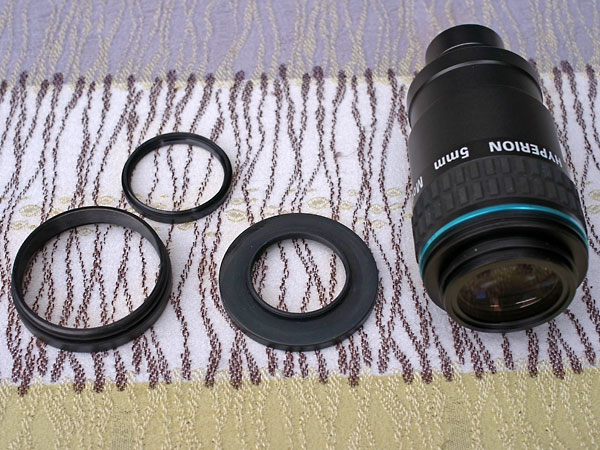

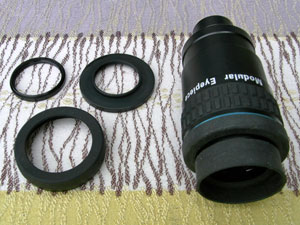

Here, you can see the Baader Hyperion 5 mm eyepiece and the three adapters needed to mount the Ricoh GXR A12-50 camera unit to the eyepiece. The first two adapters are needed to step down from the 54 mm filter thread in the eyepiece to 37 mm - the first one being just an extender, which prevents that the lenses do touch. A third adapter is required to step up from 37 mm to the 40.5 mm filter thread of the A12-50 camera unit.*

Top and bottom left: Baader Hyperion Extension Ring SP 54_i / SP 54_a (#295 8090); top and bottom right: Hyperion DT ring SP 54_i/M 37_a (#295 8037); center: Baader DT ring adapter M37/M40.5 (#245 8027)

Top and bottom left: Baader Hyperion Extension Ring SP 54_i / SP 54_a (#295 8090); top and bottom right: Hyperion DT ring SP 54_i/M 37_a (#295 8037); center: Baader DT ring adapter M37/M40.5 (#245 8027)

Bottom left: Baader Hyperion Extension Ring SP 54_i / SP 54_a (#295 8090); bottom right: Hyperion DT ring SP 54_i/M 37_a (#295 8037); top center: Baader DT ring adapter M37/M40.5 (#245 8027)

Left: adapters (see photo top right); right: Baader Hyperion 5 mm eyepiece (without eyecup)

Left: adapters (see photo top right); right: Baader Hyperion 5 mm eyepiece (without eyecup)

Left: adapters (see photo top right); right: Baader Hyperion 5 mm eyepiece (with eyecup)

*) For larger filter threads (46 mm, 49 mm, 52 mm 55 mm, 58 mm, 62 mm), only one Baader Hyperion Extension Ring (e.g. Hyperion DT-Ring SP 54_i / M 52_a) is necessary to establish the connection between the eypiece and the camera lens.



Camera Attached to Eyepiece

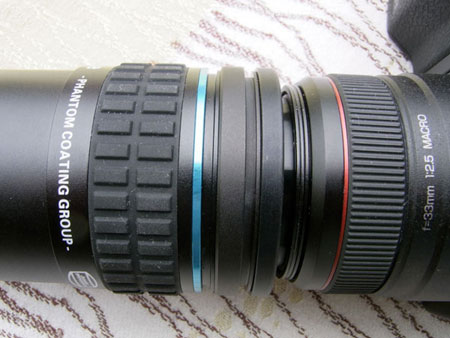

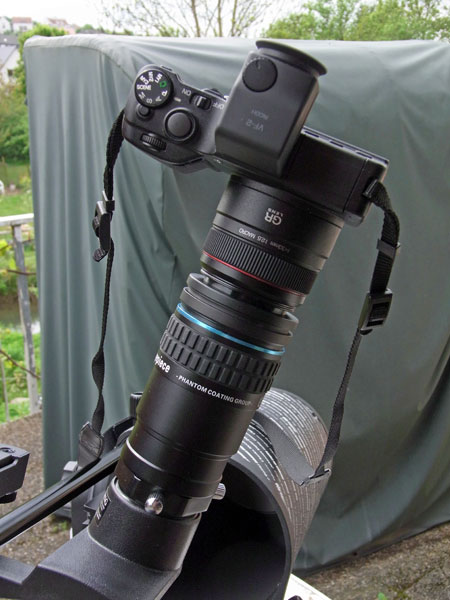

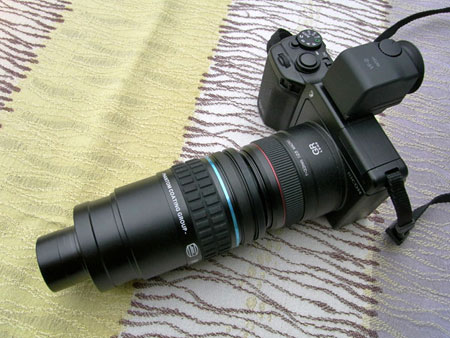

Here, you can see the Ricoh GXR A12-50 camera unit attached to the Baader Hyperion eyepiece:

Complete view

Complete view

Detail view

Complete view



Camera Attached to Telescope Heritage P130

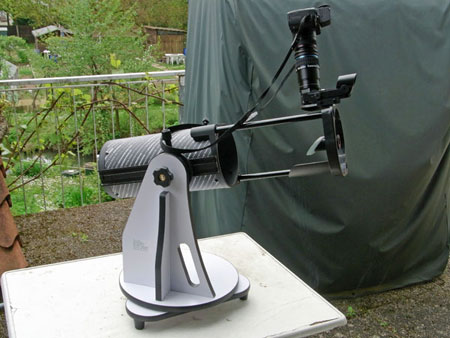

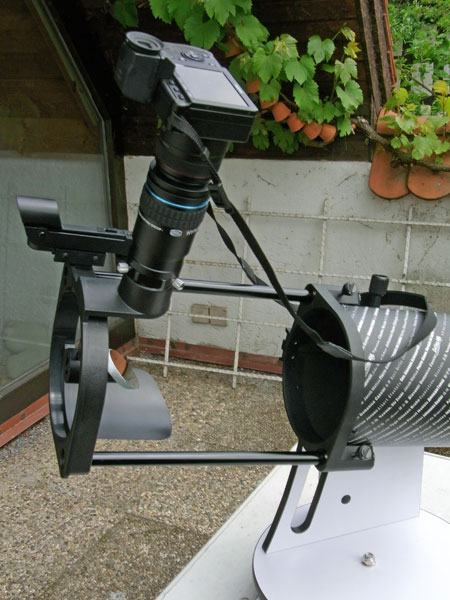

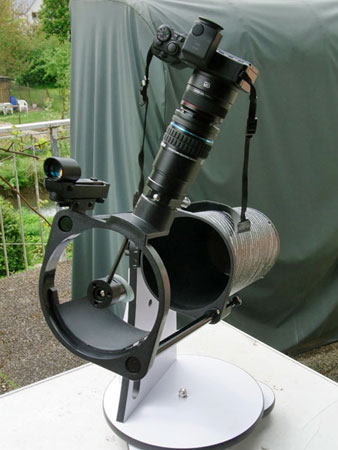

Here, you can see the Ricoh GXR A12-50 camera unit attached to the Dobsonian telescope Sky-Watcher Heritage P130:

Complete view

Detail view

View from side

View from front

View from front

View from front - detail view

Complete view

Detail view

The Hyperion 5 mm eyepiece achieves nearly the maximum magnification with the Heritage P130. Therefore, it is much better suited to photos of planets and details on the moon than the Revelation DigiScope eyepiece (32 mm focal length).

Note: Since I no longer own the Baader eyepiece, I cannot present any photos taken with this configuration.



Camera Attached to Meade 10" Dobson Telescope

Note: Since I no longer own the Baader eyepiece and the 10" Dobson telescope, I cannot present any further information and photos taken with this configuration.

Only in April 2015, I found the opportunity to attach the Ricoh GXR A12-50 camera unit to the Baader Hyperion 5 mm telescope eyepiece and my Meade 10" Dobson telescope and - in poor seeing conditions - try this combination out. Below, I show how the camera is mounted to the Baader eyepiece and the Meade 10" Dobson telescope:

Complete view

Detail view

Detail view

Detail view

Note: If you unscrew the rear lens element, the Baader Hyperion eyepiececan be used with a focal length of 22.5 mm instead of 5 mm and thus used as an overview eyepiece.

Result: The Moon (Section)

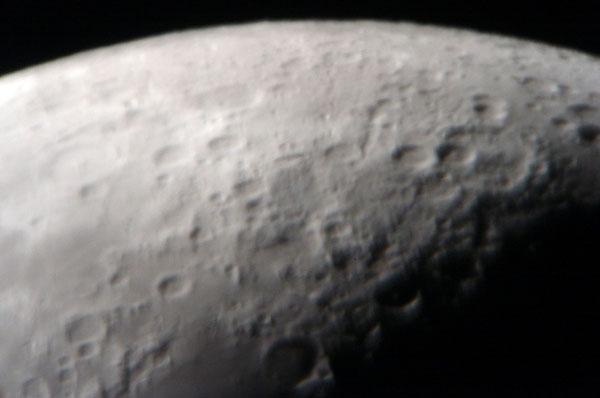

Here is a photo showing the moon (April 23, 2015), which is fairly disappointing:

Since the moon is magnified so much with this arrangement, only sections of the moon could be photographed (it would have been better, to unscrew the rear lens element and take pictures with a focal length of 22.5 mm).

Note: Since I no longer own the Baader eyepiece and the 10" Dobson telescope, I cannot present any further photos taken with this configuration.
